Remove File

To remove reference files:

  1. On the Reference Files tab, select the files you want to remove.

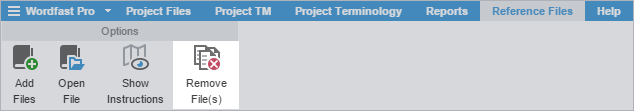

  2. Click Remove File(s).

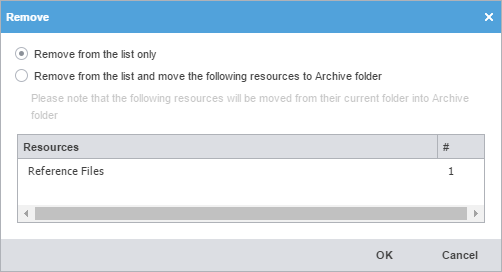

  3. On the Remove dialog, select one of the following:
    • Remove from the list only: removes the reference file from the files list but retains the reference files resources in the Project folder on your computer

    • Remove from the list and move the following resources to Archive folder: removes the reference file from the files list and moves the resources listed in the table to the Archive folder within the Project folder on your computer

  4. Click OK.

    The selected file is removed from the reference file list.

      Note:

    After a reference file is removed it can be added again. Removed reference files are not deleted and can be retrieved from the Project folder on your computer using the Add Files option.
