Creating or opening a translation memory

Translation memory (TM) is designed to provide maximum content re-use to and facilitate collaboration between globally distributed localization resources. Translators can leverage reusable content in two ways:

Note: Generic users with only Read privilege cannot select the Read-Only checkbox in the TM List to write to a remote TM. Generic Users with Read and Write privileges can select the Read-Only checkbox in the TM List, and enable read/write privileges to the remote TM.

Find below the procedures for the following tasks:

Selecting translation memory settings

To select translation memory settings:

  1. Open Wordfast Pro 3 and click .
    The TXML perspective appears.

  2. Follow steps 1 to 6 from Creating a project.
    OR
    Click Translation Memory > New/Select TM.
    The Preferences (Filtered) dialog box appears.

  3. In the left pane, click Translation Memory.
    The Translation Memory dialog box appears.


  4. Select Write unedited fuzzy and exact matches to a TM,  to write unedited fuzzy and exact matches to a TM.
    Note
    : This option creates a local TM that can be used on your desktop for local concordance searching. In this local TM, Machine Translated and fuzzy matches appear as 100% matches. Therefore, it is suggested that a new local TM be created for this purpose.

  5. Select Copy source on no match in editor checkbox, to copy the source to the target segment, if there is no match when the TM is leveraged.

  6. Select Perform TM Lookup automatically, when navigating from one segment to the other. Selected by default.
    Warning
    : Automatic TM lookup may affect system performance.

  7. Select the percentage that should be calculated for such segments.

  8. Enter the Fuzzy Match Threshold in (%).
    Note
    : This value signifies the TM leverage percentage limit for a fuzzy match. For example, if you enter a value of 75%, the tool will mark all the translations which are leveraged below 75% match as a 'No match' segment.

  9. Select the Analysis report settings:

    Select

    to...

    Calculate analysis report percentage by options: Segment or Words.

    show either % Segments or % Words based on this selection as shown in the example below. Refer to Analyzing files.

    Include spaces in total character count

    include spaces in source character count.

    Ignore translated segments from report

    ignore translated segments.

    Ignore translated exact segments from report

    ignore exact segments.

    Calculate Internal fuzzy matches in (%) checkbox

    calculate internal fuzzy matches in source files. For example, if there is a partial repetition of segments in a source file, it will be calculated as an internal fuzzy match.

    Include Internal Fuzzy matches as TM Matches

    include internal repetitions as a TM match. Selected by default.


  10. Select a condition to be followed when editing an existing Translation Unit. The options are as follows:

    Select

    to...

    Add to TM by overwriting the existing TU

    overwrite the existing translation unit. Selected by default.

    Add TM; overwrite existing TU if attributes are identical (default)

    overwrite the existing translation unit only if custom attributes for new and existing TU are identical. This option is selected by default.

    Add to TM: do not overwrite existing TU

    add to translation memory and not overwrite existing TU

    Do not add to TM

    not update the TM.

  11. Select the number of TM Lookup Hits, to increase or decrease the number of TM Lookup results based on the selected value. The default is set to 100.

  12. Select Enable sorting to show short segment length results on top. This ensures that short segments will appear first when sorted.

  13. Select Use Replaceables for higher TM matches checkbox to replace the selected terms in the translation with terms from the selected TM.
    Note:
    Selecting this option selects all suboptions by default. Select the checkbox to clear it, for the terms you do not want to select for replacement from the TM.

    Select

    to...

    Number replacement

    consider all numbers appearing in the source as a 100% match. All decimals and mathematical notifications are considered numbers. Alphanumeric values are not considered numbers, for example, 562HH.

    URL replacement

    consider all URLs appearing in the source as a 100% match.

    Punctuation replacement

    consider all punctuation appearing in the source as a 100% match.

    Email address

    consider all email addresses appearing in the source as a 100% match.

  14. Click OK.
    The translation memory properties for the project are set up.

Creating a local TM

To create a local TM:

  1. Follow steps 1 to 2 from section Selecting translation memory settings.

  2. In the left pane, select Translation Memory > TM List.
    The Translation Memory - TM List dialog box appears.




  3. Click Create TM.
    The Create Local TM dialog box appears.

  4. Enter or browse the location for the local TM.

  5. Enter a file name for the new local TM and click Save.

  6. Enter a Symbolic name for the Local TM.
    Note
    : Ensure that the name is unique and easily recognizable. If a unique name is not given, an error message appears at the bottom of the dialog box.

  7. Select Source and Target Language.
    Note
    : The default source and target languages are the same as the currently open project. Ensure that the selected TM and project have the same language pair assigned. If either of them is incorrect, the TM will not be leveraged in the project.
    An example is shown below.

  8. Click OK.
    The newly created local TM name appears in the TM List and the properties appear at the bottom of the dialog box.




  9. Select the Active check box to use the newly created local TM during translation.

  10. Select Read-Only check box if you do not want to update the local TM. (Optional)

  11. Click OK.
    A new local TM is created for the project.

Adding a local TM

To add a local TM:

  1. Follow steps 1 to 2 from section Creating a local TM.

  2. Click Add TM.
    The Add Local TM dialog box appears.




  3. Enter or browse to the location of the local TM, and select the TM format from the drop-down list:

  4. WF Classic TM format (.txt)

  5. Translation Memory Exchange format (.tmx)

    In the example below, the selected format is TMX.

  6. Select a local TM file and click Open.
    Note
    : Ensure that the correct local TM is selected. The local TM file must have a correct header, which typically includes the creation date, user ID, source and target language, and so on. If an error occurs, please log in to the Wordfast Pro 3 support hotline at www.wordfast.com.

    If the source and target languages of the selected TM do not match the locales for the project, the following message appears:


    Select the correct locales from the Add TM dialog box.

  7. Follow steps 6 to 10 from section Creating a Local TM.
    An existing local TM is selected for the project, and appears in the TM List.

Exporting a local TM

To export a local TM:

  1. Open Wordfast Pro 3 and click .
    The TXML perspective appears.

  2. Click Translation Memory > New/Select TM.
    The Preferences (Filtered) dialog box appears.

  3. In the left pane, click Translation Memory > TM List.

  4. Select a local TM and click Export TM.
    The Export Local TM dialog box appears.


  5. If required, select another TM from the drop-down list.

  6. Select the Export Type format of the TM.
    Note
    : You can either choose the default Wordfast Pro 3 TM format or TMX format.

  7. Browse to the location where you want to save the exported TM and provide a file name.

  8. Click OK.

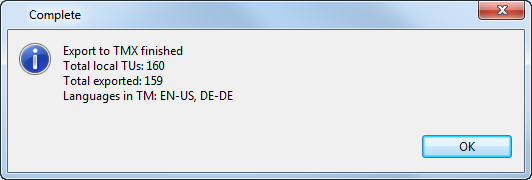

    The TM is exported to the specified location in the chosen format.

Adding a remote TM: WFServer

To add a WFServer remote TM:

  1. Follow steps 1 to 2 from section Selecting translation memory settings.

  2. In the left pane, select Translation Memory > TM List.
    The Translation Memory - TM List dialog box appears.

  3. Click Add TM.
    The Add TM dialog box appears.

  4. Click the WFServer tab.
    The WFServer options appear.




  5. Enter the remote TM URL.
    The remote TM information is populated automatically when the username, password and Project Short Code are contained within the URL string.
    Alternatively, enter each of the remote TM properties.
    The remote TM URL is populated automatically.
    Note
    : The remote TM URL and login details are provided to you by the client, if they are using a Wordfast TM server.

  6. After entering all remote TM information, click Test.
    Connection to the remote TM is established and a message appears.

  7. Modify the Symbolic name for the remote TM, if required.
    Note
    : The default symbolic name is a combination of the user name, address and port details.

  8. Enter Workgroup ID and Search Depth. (Optional)
    Note
    : The Workgroup ID is a 10 digit number and is provided to you by the Wordfast Pro 3 administrator. If a Workgroup ID is not entered, you can only read from the remote TM. The Workgroup ID is required if you need to update the remote TM.
    Ensure that the user name is unique and easily recognizable.
    Search depth signifies the number of results that can be viewed for a particular search. For example, if you are looking for segments containing the word "hotel", only the first 200 segments in the remote TM containing that word will appear.

  9. Enter Timeout Properties.
    There are three types of timeouts:

  10. Select Use TM Admin Password to provide password to clean up target content and update the TM.
    The example below shows the reminder that appears when the mouse is pointed to the password properties.

    Note
    : The password will be provided to you if you have Project Manager role access rights.

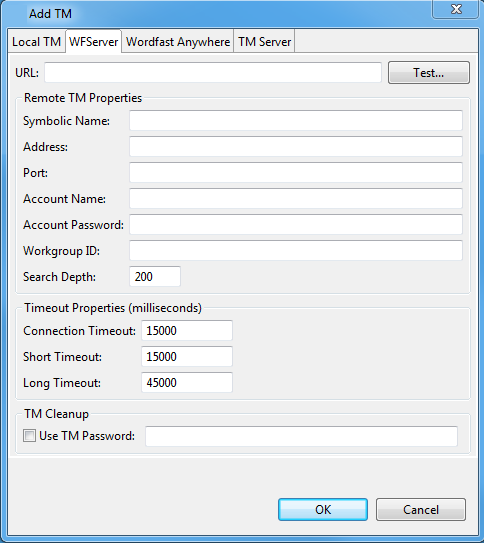

    Find below a possible setup for a remote TM.

  11. Click OK.
    The newly created or added remote TM name appears in the TM List and the properties appear at the bottom of the dialog box. An example appears below.
    Click the TM List column name to view the list in ascending, descending or default order. If any of the TMs are selected, then the list will be sorted based on selected and unselected TMs.


  12. Select the Active check box, to use the new remote TM during translation.

  13. Select the Read-Only check box, if you do not want to update the remote TM. (Optional)

  14. Click OK.
    A new or existing remote TM is created or opened for the project.

Adding a remote TM: Wordfast Anywhere

To add a Wordfast Anywhere remote TM:

  1. Follow steps 1 to 2 from section Selecting translation memory settings.

  2. In the left pane, select Translation Memory > TM List.
    The Translation Memory - TM List dialog box appears.

  3. Click Add TM.
    The Add TM dialog box appears.

  4. Click the Wordfast Anywhere tab.
    The Wordfast Anywhere options appear.

  5. Give the glossary a Symbolic Name.

  6. Enter the API Key.

  7. Click Test.
    The following message appears when Wordfast successfully connects to Wordfast Anywhere.

    For more information, refer to the Sharing to Applications topic in the Wordfast Anywhere Manual.

Adding a remote TM: TM Server

To add a TM Server remote TM:

  1. Follow steps 1 to 2 from section Selecting translation memory settings.

  2. In the left pane, select Translation Memory > TM List.
    The Translation Memory - TM List dialog box appears.

  3. Click Add TM.
    The Add TM dialog box appears.

  4. Click the TM Server tab.
    The TM Server options appear.

  5. Enter a unique name in the Symbolic Name field.

  6. Enter the remote translation memory URL using the following format: tm://address:port/TMS?

  7. Click Test.
    The remote TM properties are populated, and a connection to the remote TM is established.

  8. Enter the Workgroup ID. (Optional)
    Note
    : The Workgroup ID is a 10 digit number and is provided to you by the Wordfast Pro 3 administrator. If a Workgroup ID is not entered, you can only read from the remote TM. The Workgroup ID is required if you need to update the remote TM.

  9. Click OK.
    The newly added remote TM name appears in the TM List and the properties appear at the bottom of the dialog box.

Changing TM Priority

  1. Click TM Priority under Translation Memory.
    The Translation Memory - TM Priority dialog box appears.




  2. Click or to prioritize newly created or available local and remote TMs.
    Note
    : Prioritizing TMs will ensure that the first TM in the list is leveraged first, followed by the remaining TMs.
